Onik+

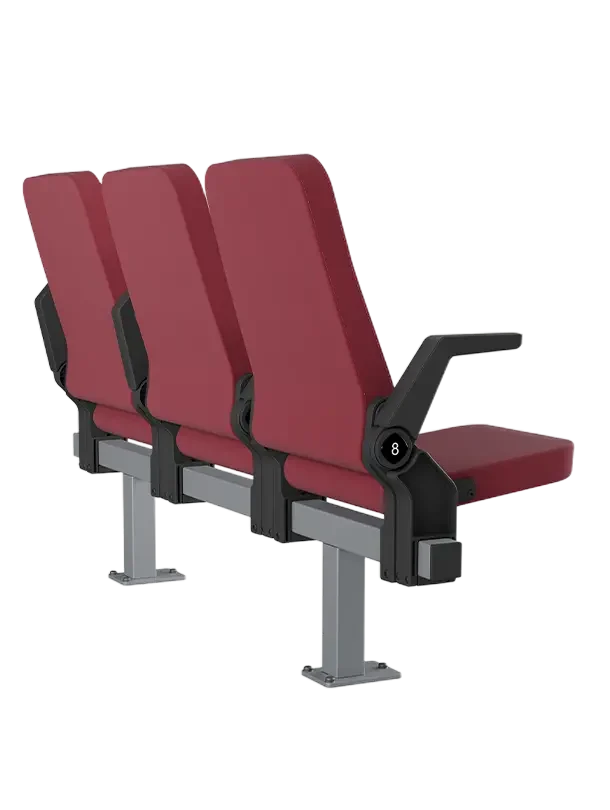

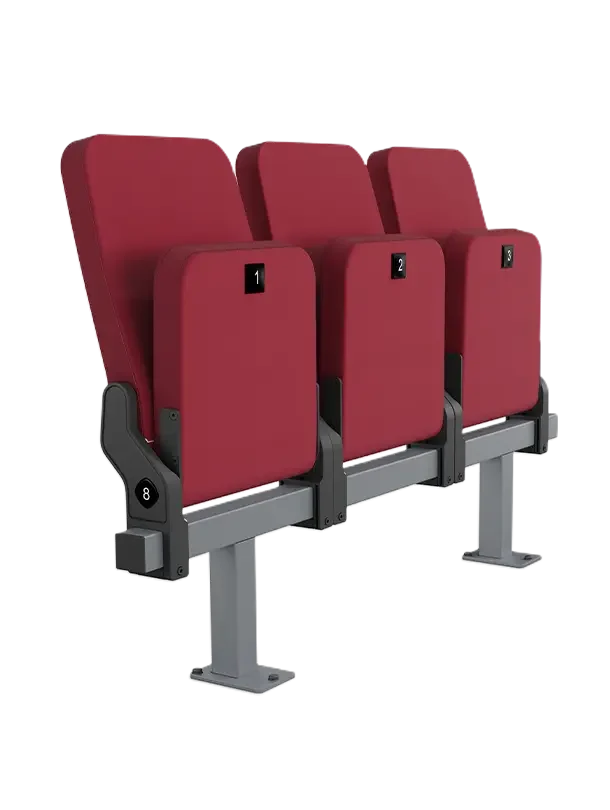

Onik+ is a next-generation tip-up folding seat with Controlled Return Technology (CRT) for stadiums, arenas and multipurpose venues—from general stands to VIP/VVIP areas. Upholstered cushions on textured polypropylene shells deliver premium comfort, while the 23 cm folded depth and floor, riser or beam mounting make layouts fast and flexible in new builds or retrofits.

Monoblock polyurethane cushions sit over an internal steel-tube frame with flat spring mesh and a zip-off cover; seat and back pivot independently for a silent gravity return. Polyamide (50% GF) sides clamp to a 60×60 mm steel beam; joints are hot-dip galvanised and polyester-coated for durability. The range offers quick serviceability and low maintenance, with options such as fixed or tip-up armrests (with cup holder), seat/row numbering, logo customisation and connectivity to align with premium hospitality requirements.

Descripción

Onik+ is a next-generation tip-up folding seat with Controlled Return Technology (CRT) for stadiums, arenas and multipurpose venues—from general stands to VIP/VVIP areas. Upholstered cushions on textured polypropylene shells deliver premium comfort, while the 23 cm folded depth and floor, riser or beam mounting make layouts fast and flexible in new builds or retrofits.

Monoblock polyurethane cushions sit over an internal steel-tube frame with flat spring mesh and a zip-off cover; seat and back pivot independently for a silent gravity return. Polyamide (50% GF) sides clamp to a 60×60 mm steel beam; joints are hot-dip galvanised and polyester-coated for durability. The range offers quick serviceability and low maintenance, with options such as fixed or tip-up armrests (with cup holder), seat/row numbering, logo customisation and connectivity to align with premium hospitality requirements.

miriam castells diseno interiores oficina figueras international seating 11

Design Center

El Centro Internacional de Diseño de Asientos de Figueras se encuentra en una de las naves de la fábrica de producción de la marca. De este modo, existe un vínculo tangible entre el proceso de diseño …
  • Fija

  • Tip up

  • Enchufes

  • Laterales tapizados

  • Numeración de asientos

  • Numeración de filas

  • Portavasos

  • Reposabrazos

  • USB

America

Atlanta

Atlas

Field 2

Fiesta

Florida

Kubik

Libano

Lisboa

London

Loop

Main Line Plus

Maya

Rain

Remix 3

Revive 1

Roccia

Sevilla

Spike

Valencia

Wicker

Datos técnicos y dimensiones

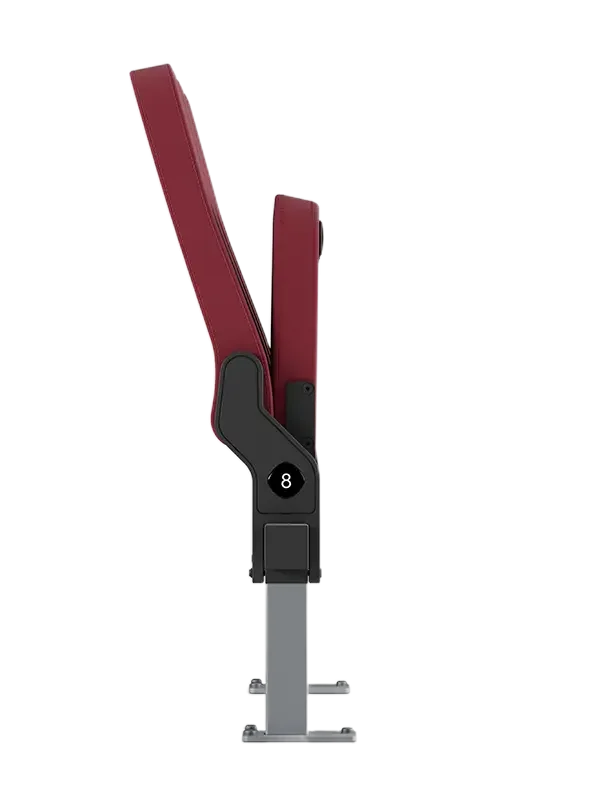

  • Folded seat thickness: 23 cm.
  • Centre-to-centre distance: adjustable to project.
  • Seat/back: monoblock cushions (moulded PU foam, internal steel frame + spring mesh) with removable upholstered covers.

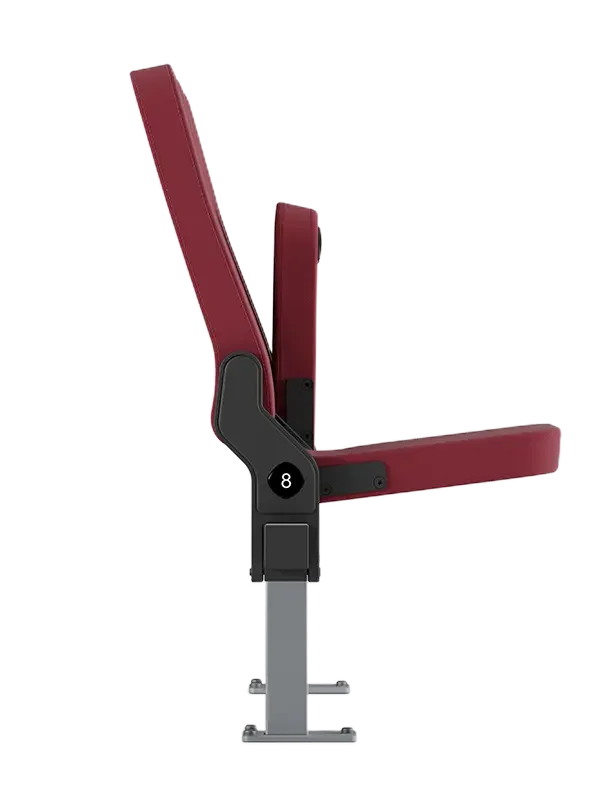

  • Motion: CRT automatic gravity return, silent.
  • Foam density: back 50–55 kg/m3; seat 60–65 kg/m3.
  • Side supports: PA-GF50 with steel rotation shaft; PP outer covers; row-numbering ready.

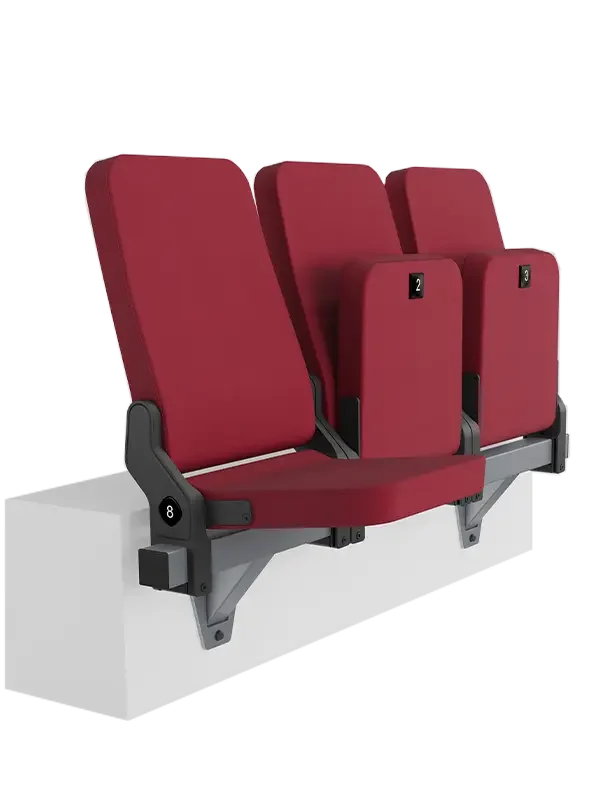

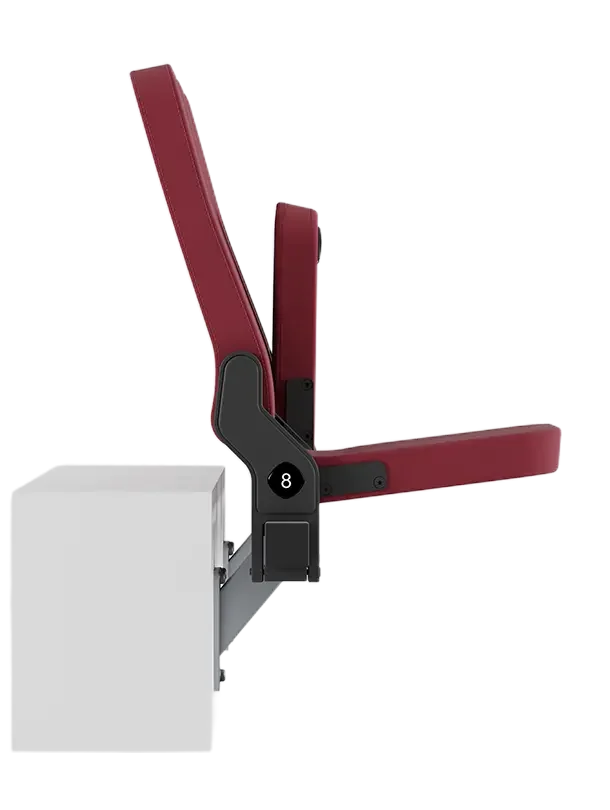

  • Structure/mounting: steel tube/plate; beam 60 x 60 mm (3-4 mm) with adjustable clamping; floor or riser installation.
  • Finish: hot-dip galvanising + polyester paint (approx. 100 µm total).

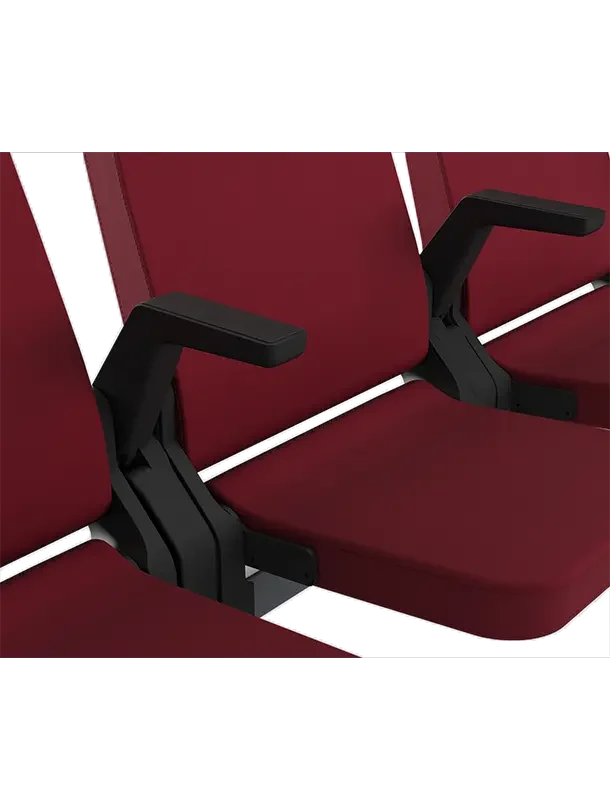

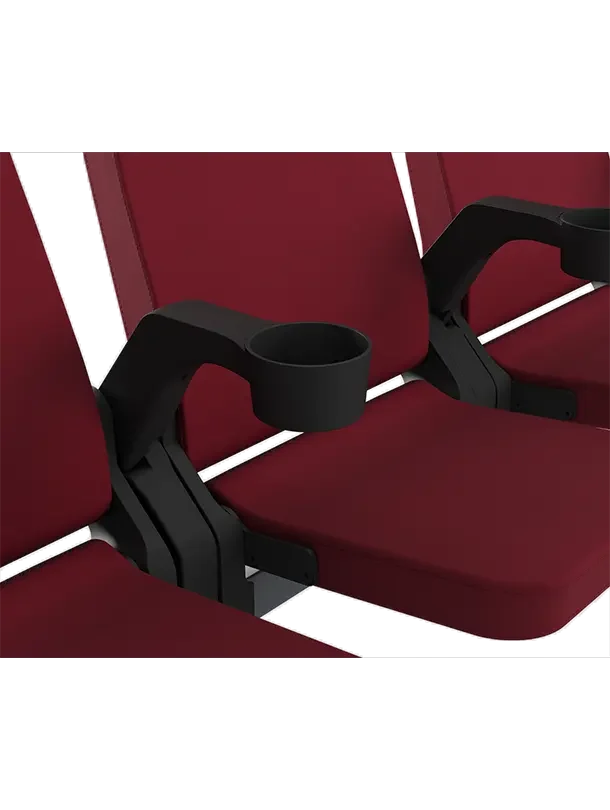

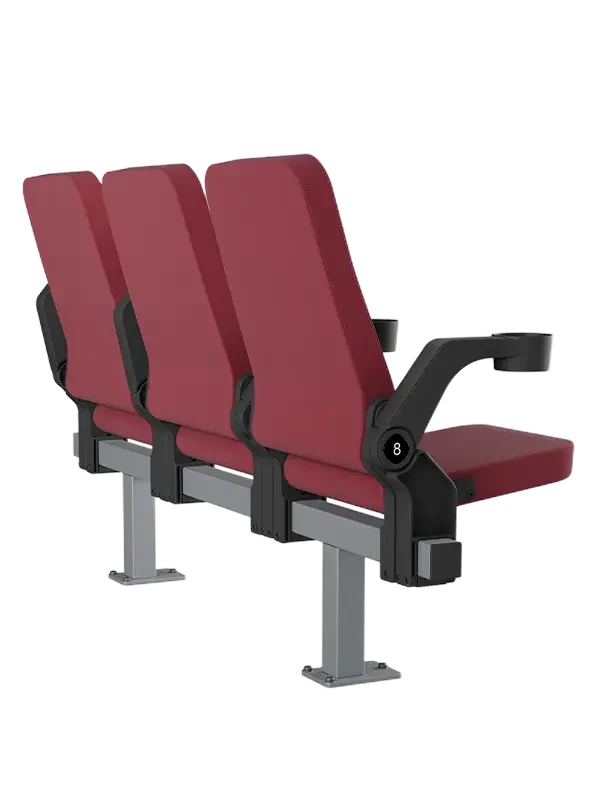

  • Options: fixed/folding armrests (cup holder), numbering, logo, connectivity.
  • Certifications: EN 12727 Level 4; BS 5852; CAL TB 117-2013 Sec.1; UNE 23.727-90 1R (M1); EN 1021-1/-2; ISO 12947-2 (100,000 Martindale); ISO 105-B02; EN ISO 2409.
