Onik

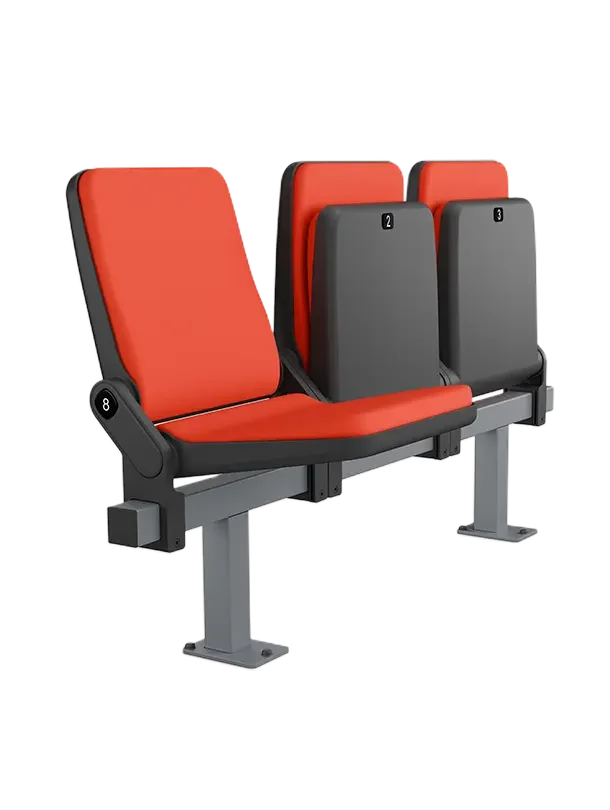

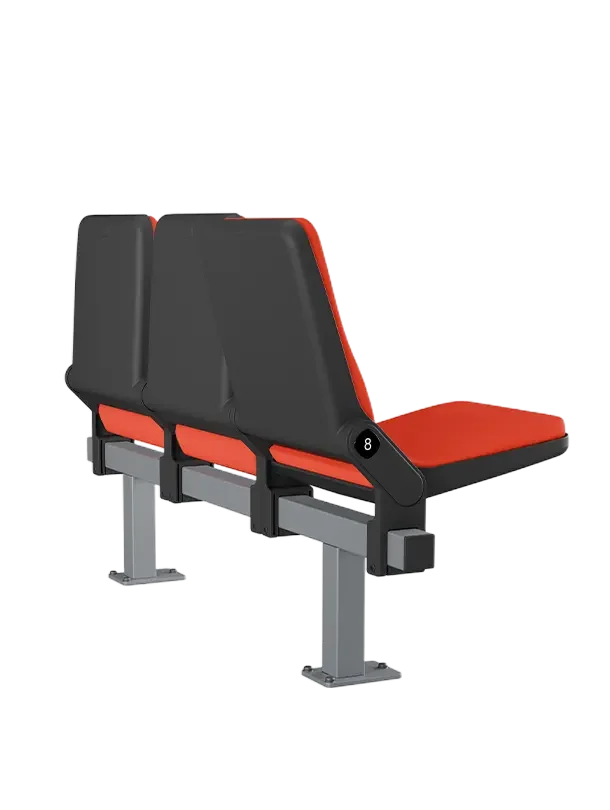

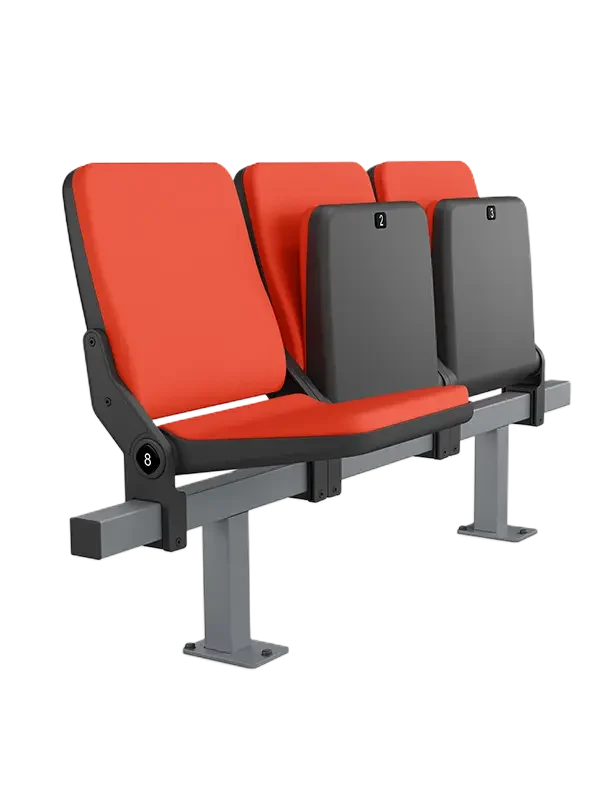

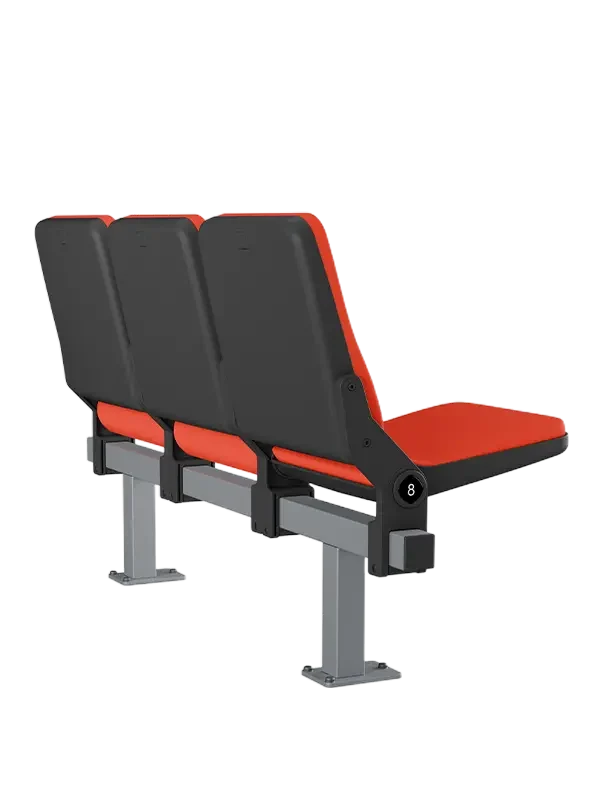

Onik is a premium tip-up, folding seat with Controlled Return Technology (CRT) engineered for sports venues and multipurpose arenas. Upholstered cushions paired with polypropylene shells deliver high comfort and durability, while the automatic folding of seat and backrest keeps aisles clear and maximises capacity—indoors or outdoors.

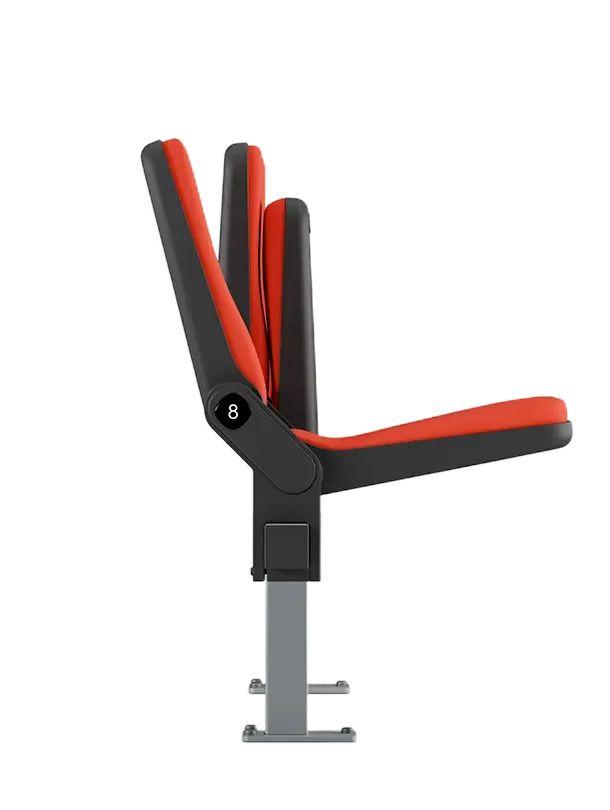

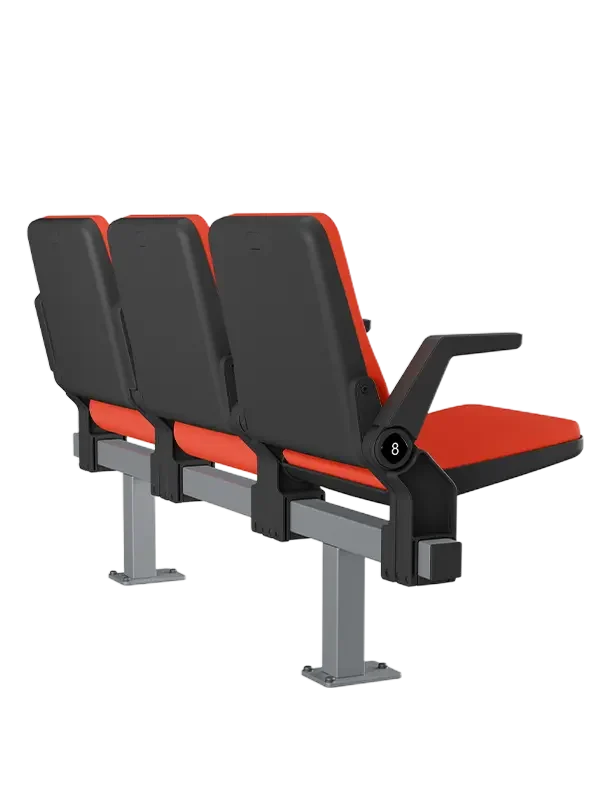

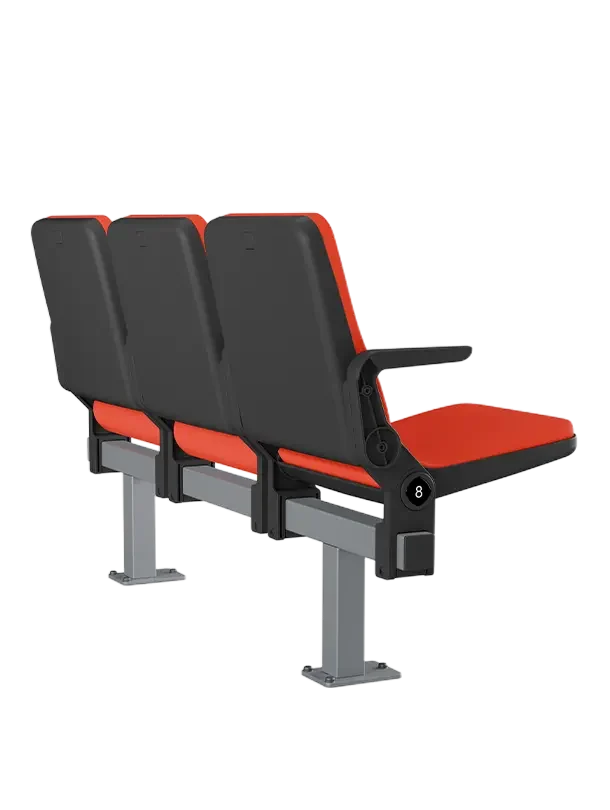

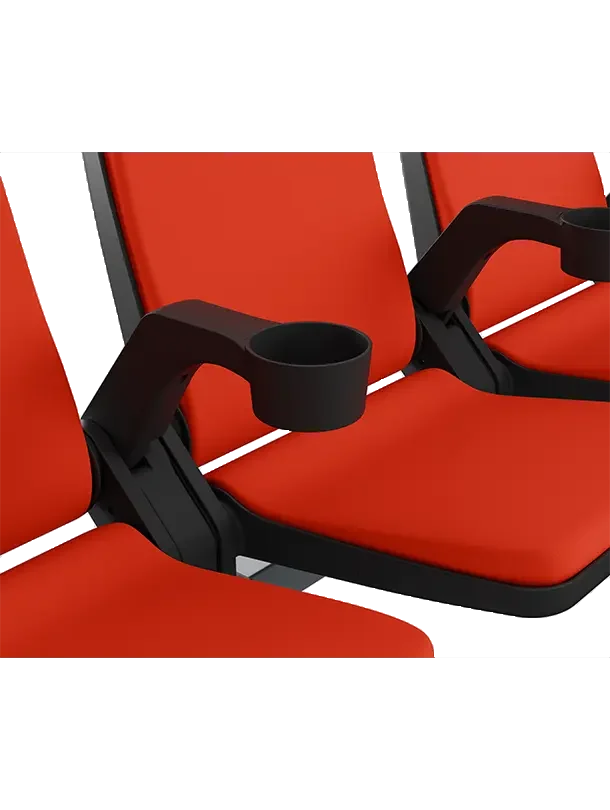

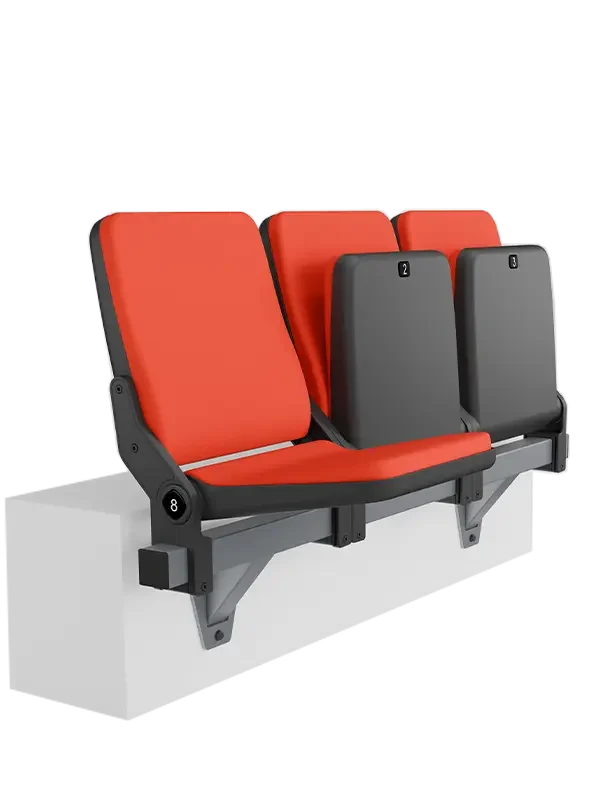

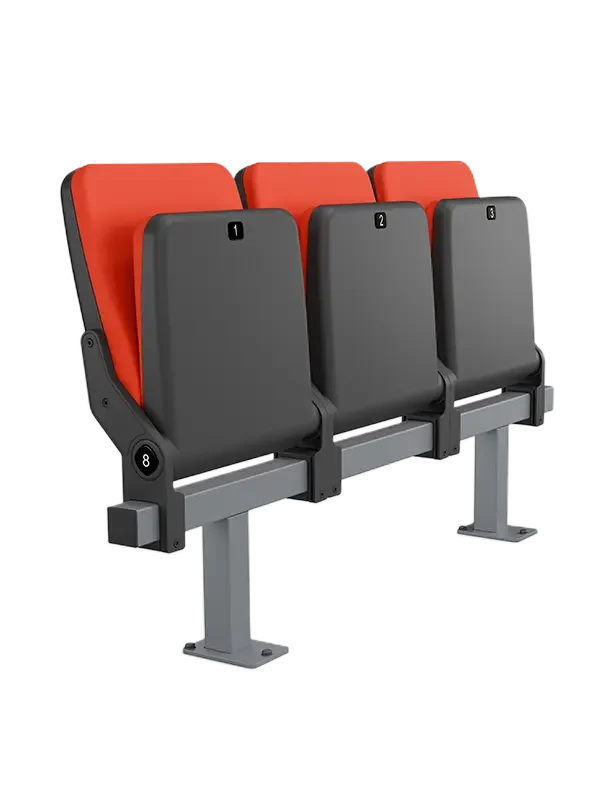

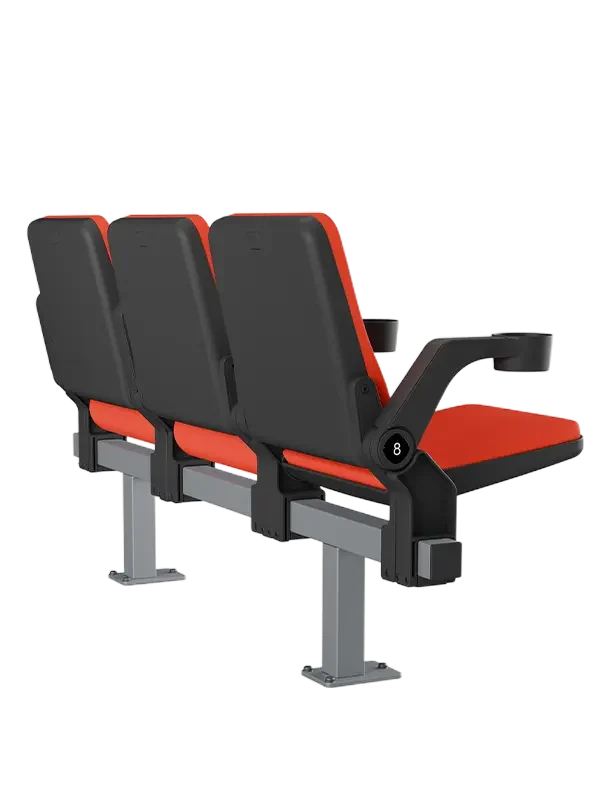

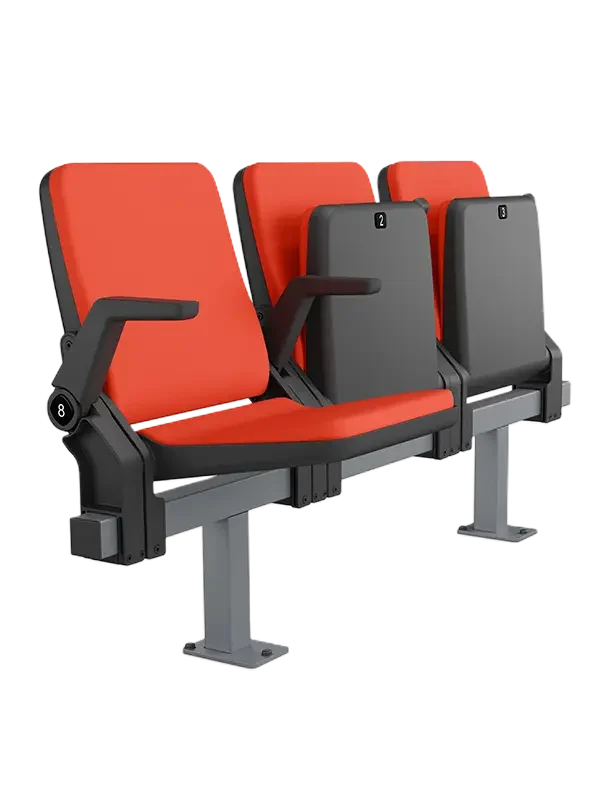

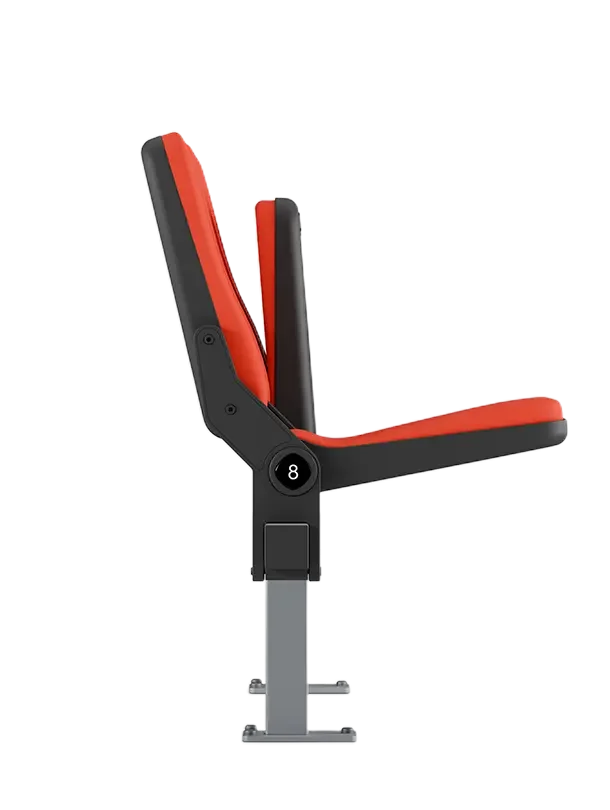

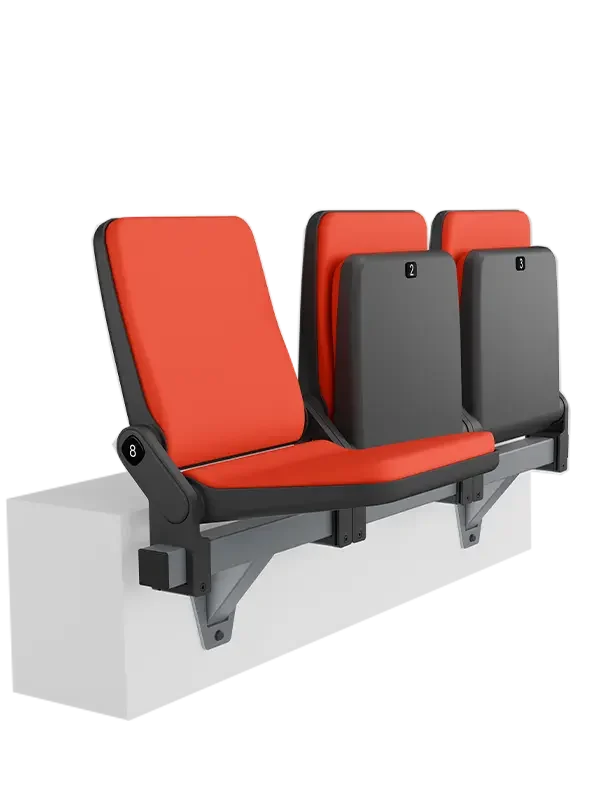

Independent seat and back rotation with CRT ensures a smooth, silent automatic return. Side supports in glass-fibre-reinforced polyamide integrate a steel shaft for strength; components are easy to replace and clean for low-maintenance operation. Flexible installation—floor, riser or beam-mounted with adjustable positioning—lets you fine-tune sightlines and capacity. Accessories include fixed or tip-up armrests (with cup holder), numbering, logo customisation and connectivity. Folded depth is just 162 mm; wheelbase is adjustable to project needs.

Description

Onik is a premium tip-up, folding seat with Controlled Return Technology (CRT) engineered for sports venues and multipurpose arenas. Upholstered cushions paired with polypropylene shells deliver high comfort and durability, while the automatic folding of seat and backrest keeps aisles clear and maximises capacity—indoors or outdoors.

Independent seat and back rotation with CRT ensures a smooth, silent automatic return. Side supports in glass-fibre-reinforced polyamide integrate a steel shaft for strength; components are easy to replace and clean for low-maintenance operation. Flexible installation—floor, riser or beam-mounted with adjustable positioning—lets you fine-tune sightlines and capacity. Accessories include fixed or tip-up armrests (with cup holder), numbering, logo customisation and connectivity. Folded depth is just 162 mm; wheelbase is adjustable to project needs.

miriam castells diseno interiores oficina figueras international seating 11

Design Center

Le Figueras International Seating Design Center est situé dans l'un des halls de l'usine de production de la marque. Il existe ainsi un lien tangible entre le processus de conception des produits et l…
  • Fixée

  • Tip up

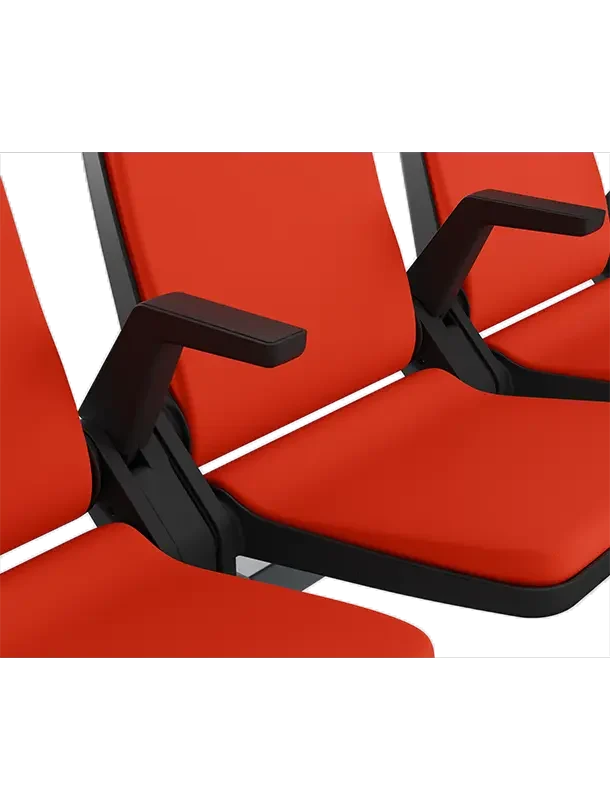

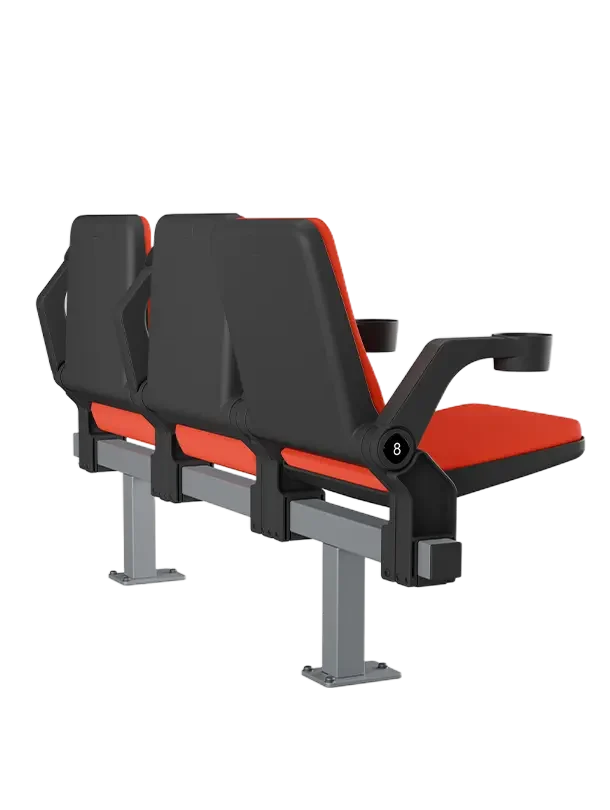

  • Accoudoir

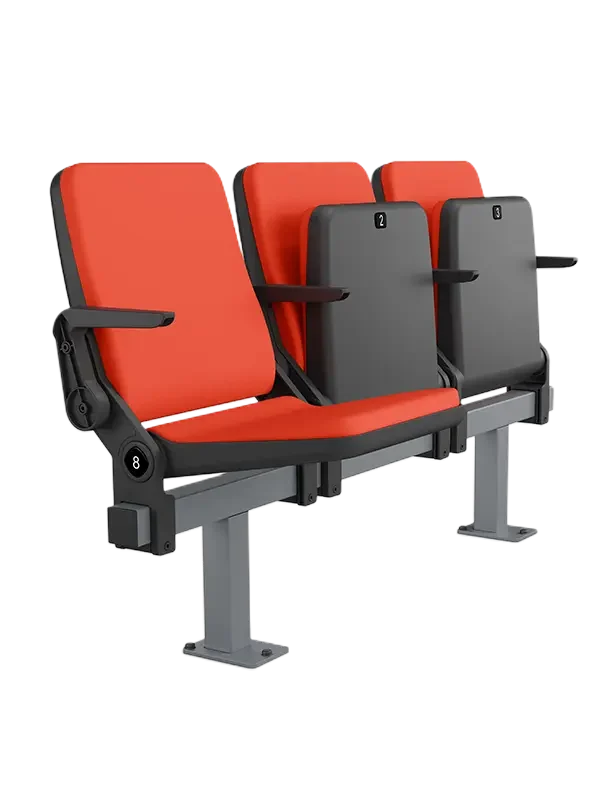

  • Numérotation des lignes

  • Numérotation des sièges

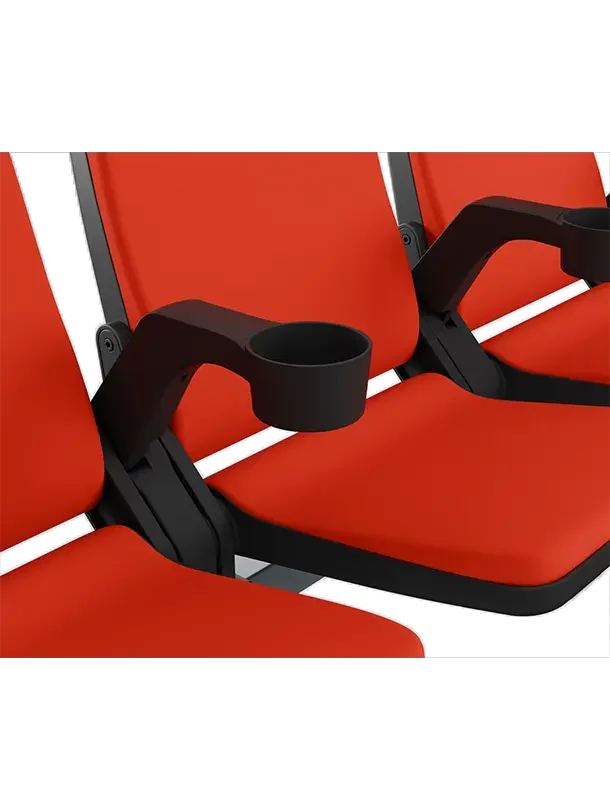

  • Porte-gobelet

  • Prises

  • USB

America

Atlanta

Atlas

Field 2

Fiesta

Florida

Kubik

Libano

Lisboa

London

Loop

Main Line Plus

Maya

Rain

Remix 3

Revive 1

Roccia

Sevilla

Spike

Valencia

Wicker

Données techniques et dimensions

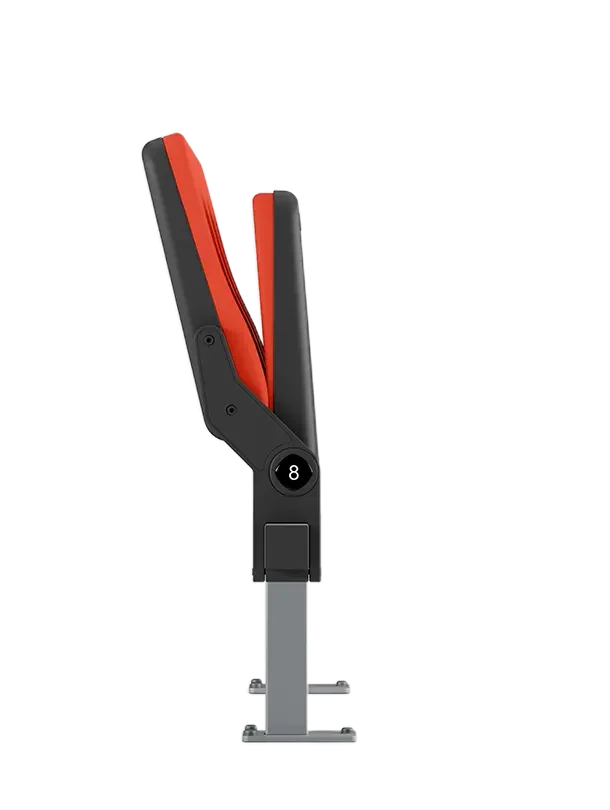

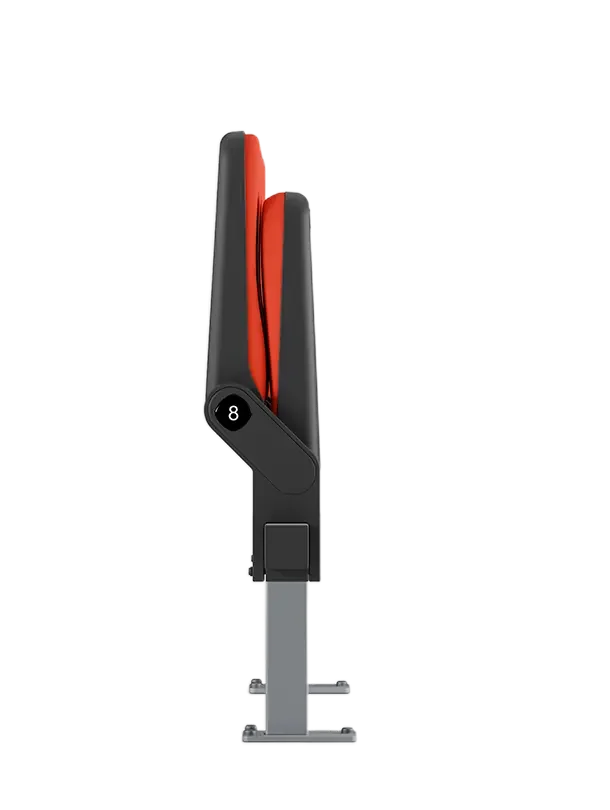

  • Folded thickness: 162 mm; wheelbase: adjustable to project.

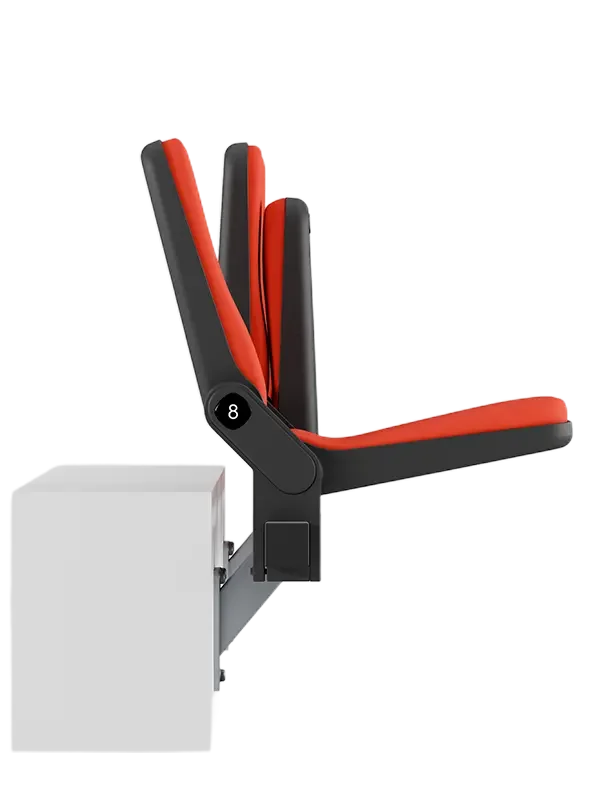

  • Mechanism: independent tip-up seat & back with CRT (silent, automatic return).
  • Shells & sides: injection-moulded PP (20% GF); side supports in PA (50% GF) with integrated steel shaft.

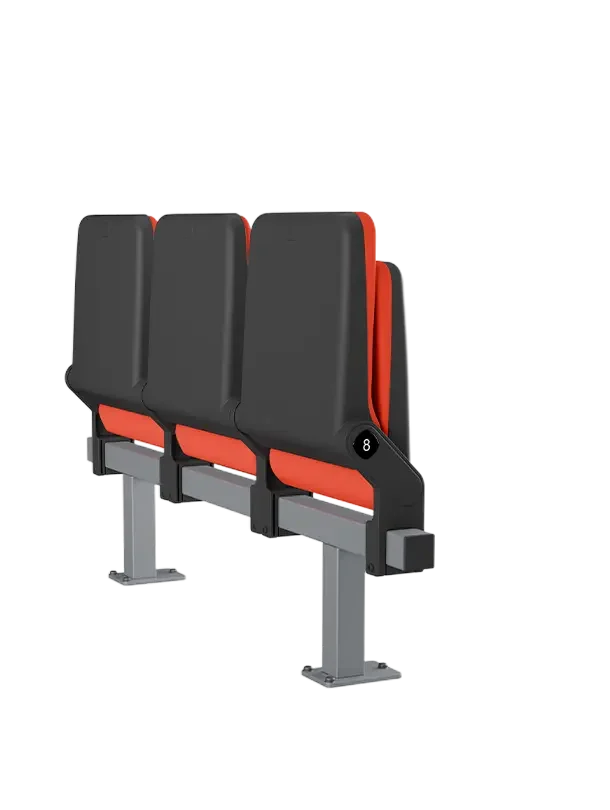

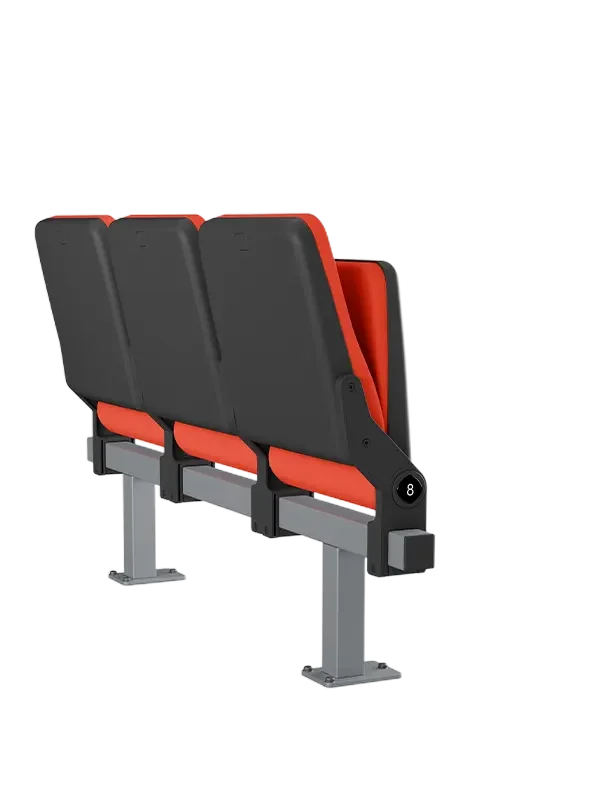

  • Structure: 60×60 mm steel beam (3–4 mm); clamped feet for floor or riser; hot-dip galvanised + polyester paint (~100 µm).
  • Upholstery & cushions: cold-injected foam, high abrasion/lightfastness; covers and parts replaceable with one tool.
  • Finish & durability: textured, washable surface; high weather & UV resistance (ISO 4892-2).
  • Installation: adjustable positioning on beam; seats/arms fixed with metric fasteners.
  • Maintenance: seat/back washable; no specific maintenance required.
  • Compliance: EN 12727 Level 4 and key fire/durability standards (e.g., BS 5852, EN 1021-1/-2, CAL TB 117-2013, ISO 105-B02, 100,000 Martindale).
